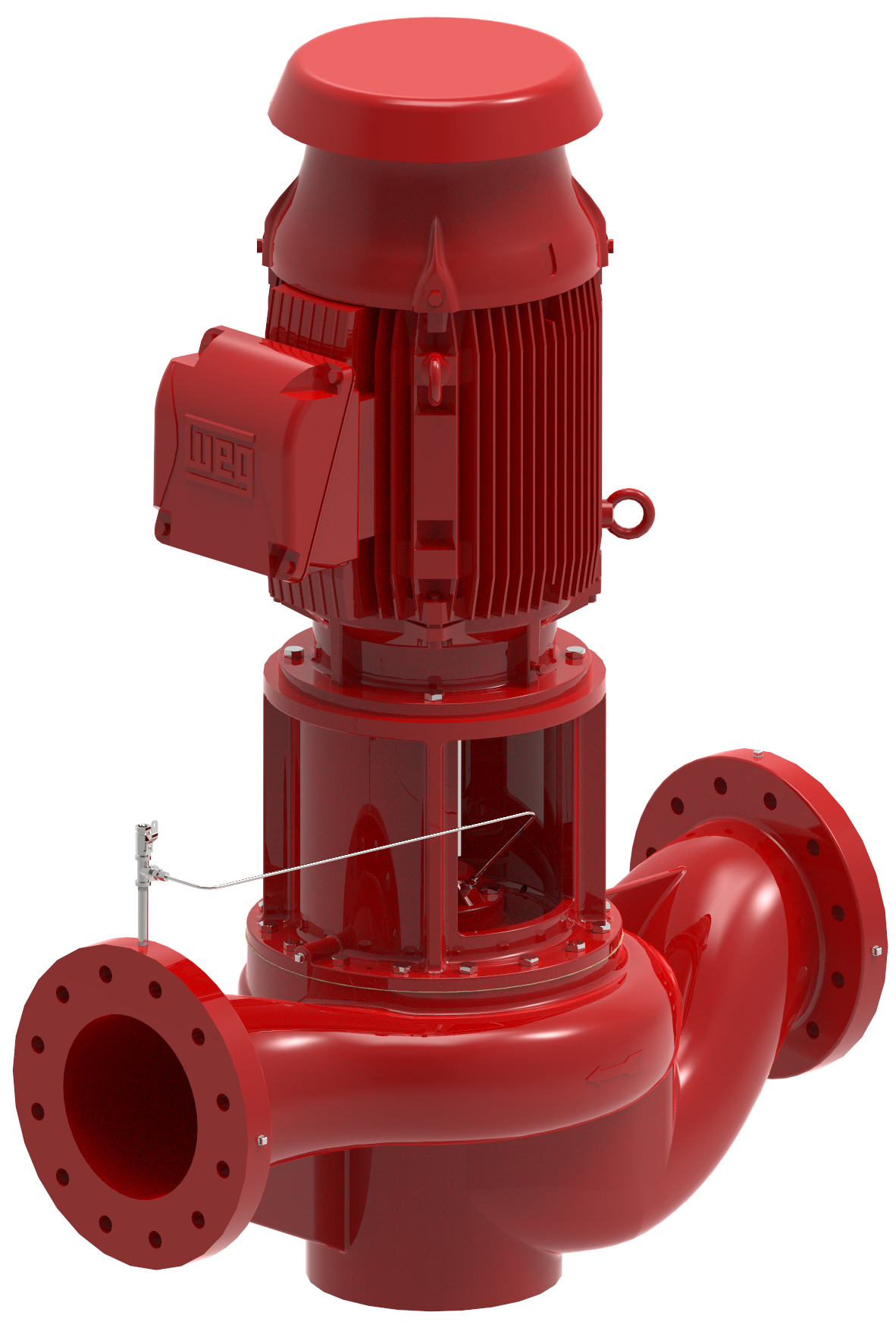

Split-Coupled Vertical In-Line HVAC Pumps
Split-Coupled Configuration
Patterson split, rigid coupled vertical in-line HVAC pumps offer a high-efficiency design that minimizes energy consumption, and their back pullout configuration provides easy access and simplifies maintenance.
Benefits/Features
- Gauge taps at the suction and discharge connections for complete monitoring flexibility
- Annular pressure reducing clearance with impeller balance holes to reduce axial thrust
- Precision-cast, dynamically balanced impeller minimizes vibration and maximizes bearing life
- Precision bearings and shaft design limit deflection at the seal face
- Mechanical seal is replaceable without removing the motor
- Rigid coupling to eliminate the requirement for field shaft alignment
- Standard case wear ring
- Mechanical seal is standard in carbon vs. silicon carbide (optional: tungsten carbide) with an external seal flush line
- Every pump hydrostatically pressure-tested
- Optional 250-lb pump flanges on many models
- Standard construction with stainless steel shaft
| HEAD | 10-500 FT |
| FLOW | 25-6,000 GPM |
| DRIVE | ELECTRIC |
