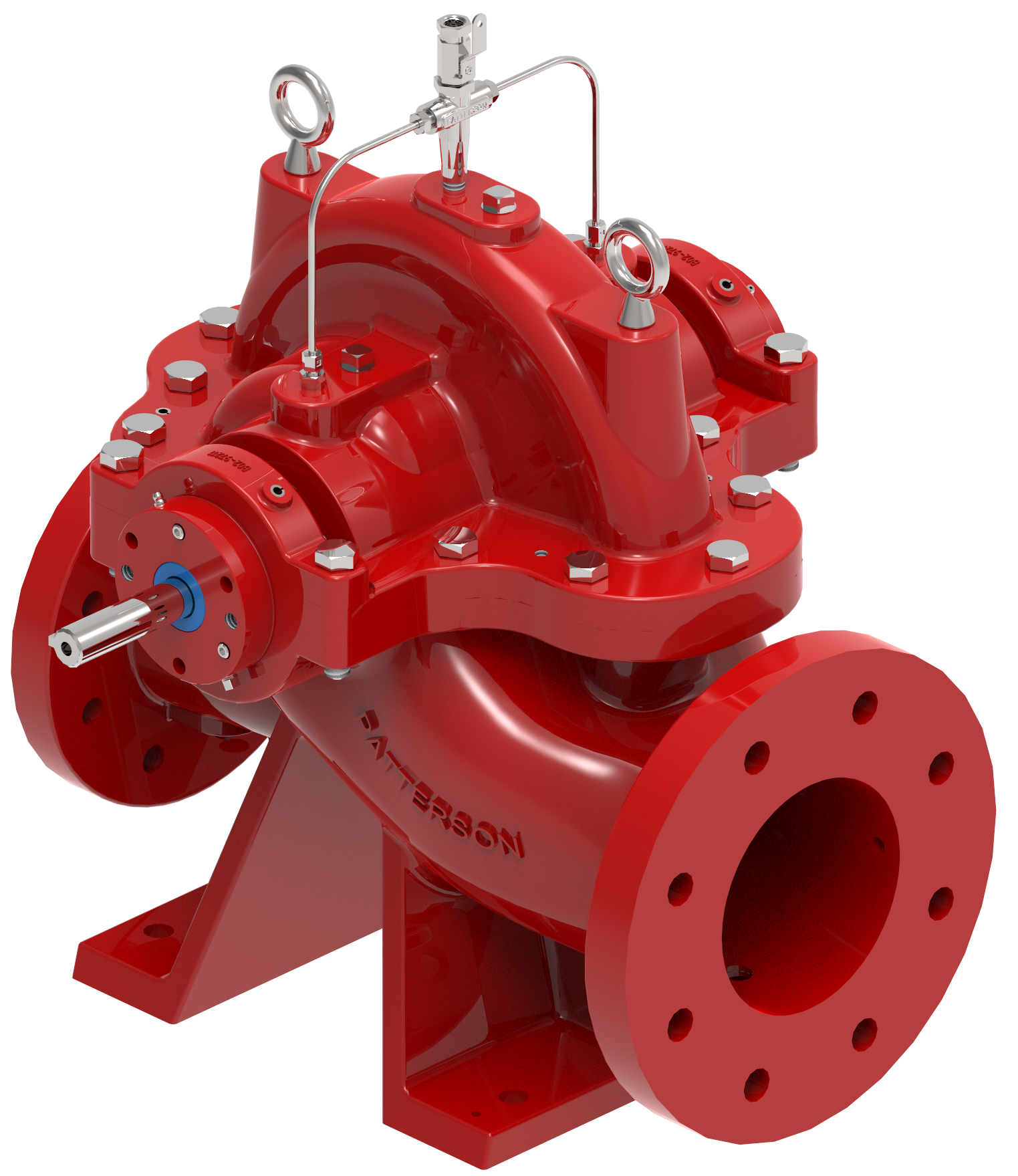

Horizontal Split Case HVAC Pumps
Frame-Mounted Configuration
Patterson horizontal split case pumps offer a high-efficiency design that minimizes energy consumption and provides easy access and simplifies maintenance.
Benefits/Features
- Gauge taps at the suction and discharge connections for complete monitoring flexibility
- Precision-cast, dynamically balanced impeller minimizes vibration and maximizes bearing life
- Precision bearings and shaft design limit deflection at the seal face
- Durable flex coupling, with optional variable speed, absorbs vibration
- Rigid steel base aids in pump alignment
- Standard case wear ring and grease-lubricated bearings
- Mechanical seals are standard in carbon vs. silicon carbide (optional: tungsten carbide) with external seal flush lines
- Every pump hydrostatically pressure-tested
- Optional 250-lb pump flanges on all models
- Standard construction with bronze shaft sleeve and steel shaft; optional stainless steel sleeve and shaft available
| HEAD | 8-205 FT |
| FLOW | 66-6,500 GPM |
| DRIVE | ELECTRIC |
